QSFP200G-FR4-2-i7Fiber-Datasheet

SPECIFICATION

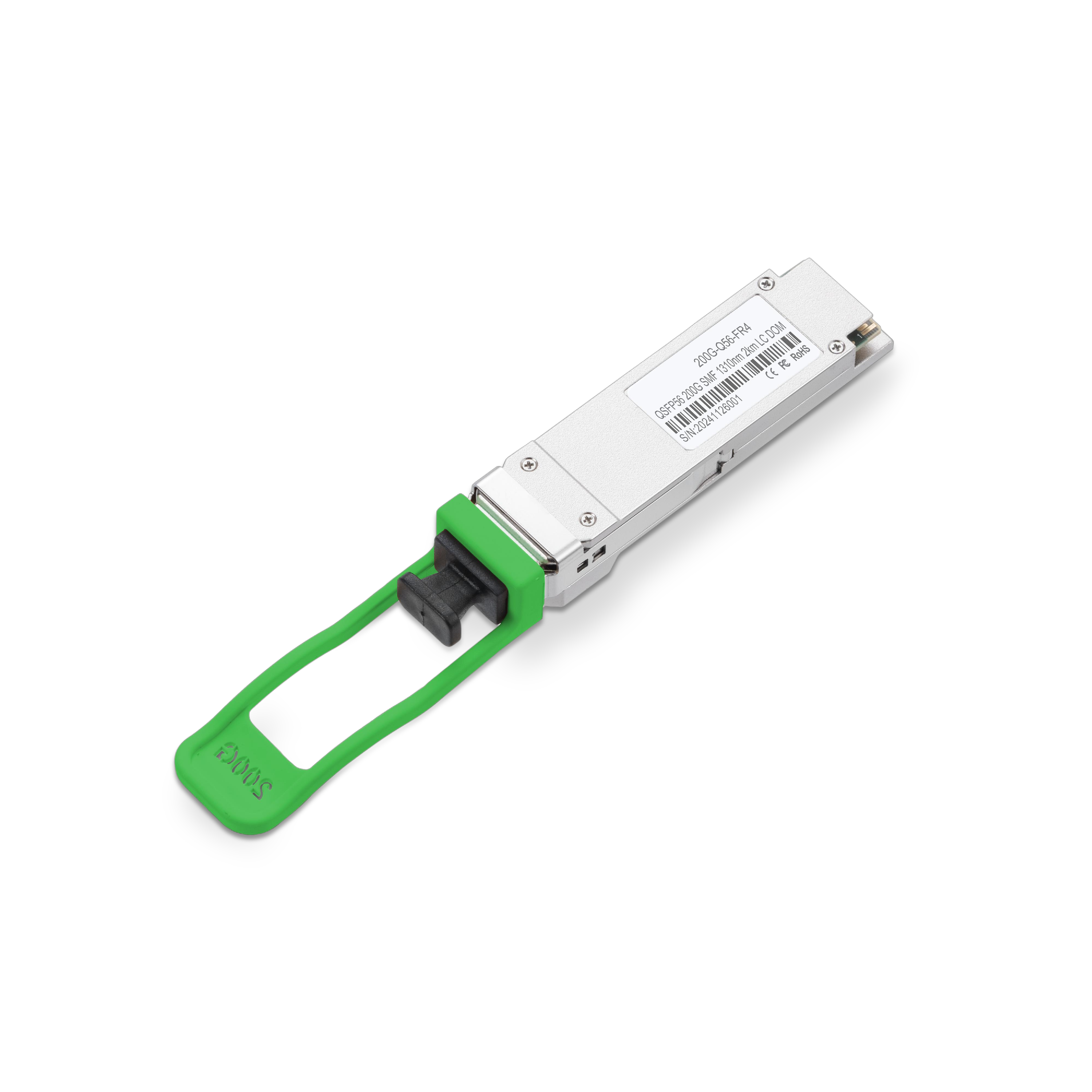

The QSFP200G-FR4-2 is a QSFP56 transceiver for 200G Ethernet, supporting 2 km single-mode fiber (SMF) transmission. It converts 4x50Gb/s PAM4 electrical lanes into 4 CWDM optical channels and vice versa, enabling bidirectional 200G data transfer. It features a duplex LC connector and a 38-pin QSFP56 MSA-compliant electrical interface, making it suitable for metro-edge and data center interconnects.

It can be used as a 4x100G breakout to QSFP100G-FR-2.

• Hot Pluggable QSFP56 form factor
• Operating data rate 212.5Gb/s
• Single +3.3V power supply
• LC duplex connector
• Max power dissipation 6.5W
• Up to 2km transmission on single mode fiber
• PIN receivers
• Built-in digital diagnostic function
• Commercial temperature range 0°C to 70°C
