QSFP200G-LR4-10-i7Fiber-Datasheet

SPECIFICATION

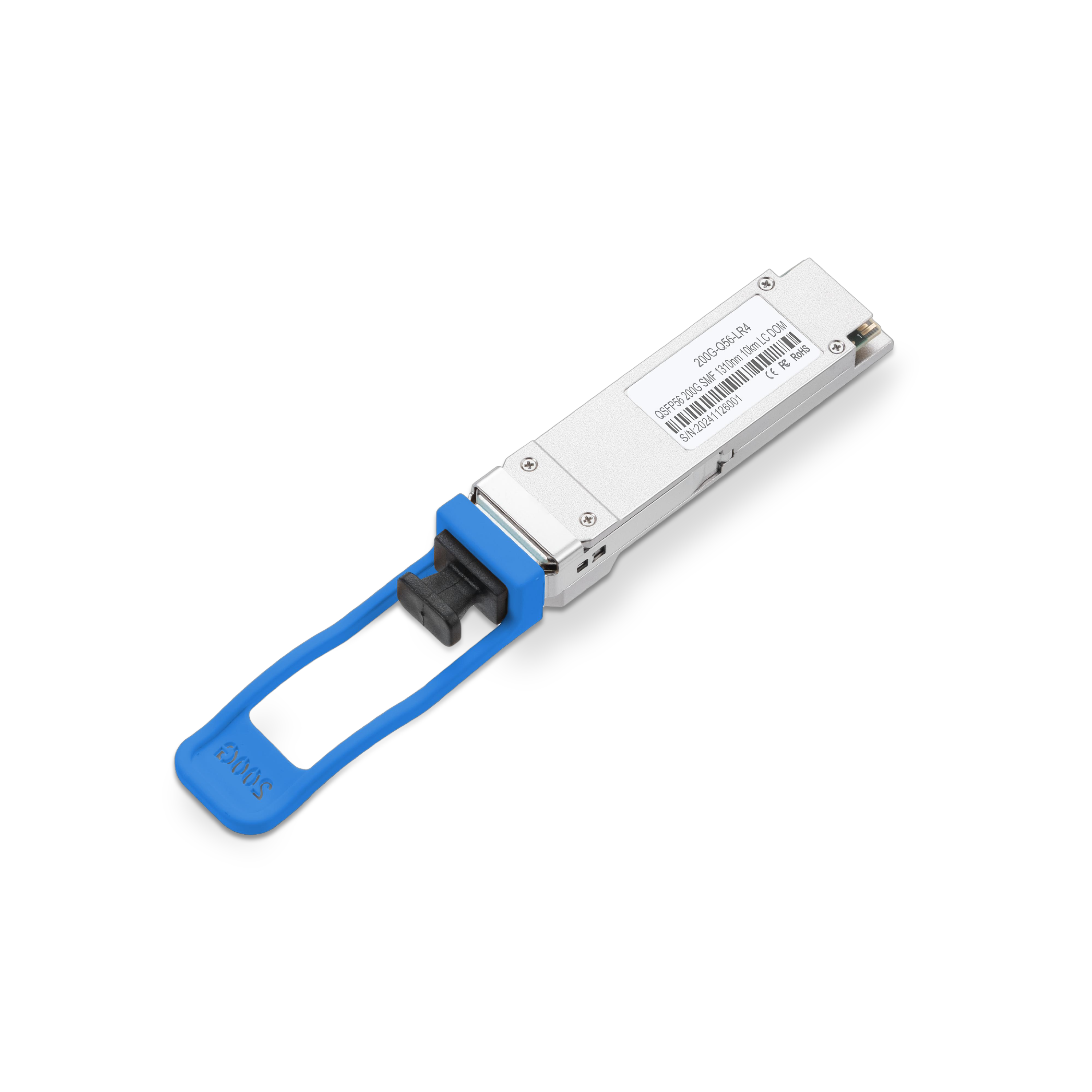

The QSFP200G-LR4-10 is a QSFP56 transceiver for 200G Ethernet, supporting long-reach applications up to 10 km over single-mode fiber. It uses 4x50G PAM4 modulation to achieve a total data rate of 212.5 Gbps. The module operates at a 1310 nm wavelength with dual LC connectors and complies with IEEE 802.3bs and QSFP56 MSA standards. Its low-power design (<8W) enables hot-swappable deployment in high-density networks.

• Hot Pluggable QSFP56 form factor
• Operating data rate 212.5Gbps
•  Single +3.3V power supply
•  LC connector
• Max power dissipation <8W
•  PIN receivers
•  Built-in digital diagnostic function
•  Commercial temperature range 0°C to 70°C
