QDD400G-DR4-500-i7Fiber-Datasheet

SPECIFICATION

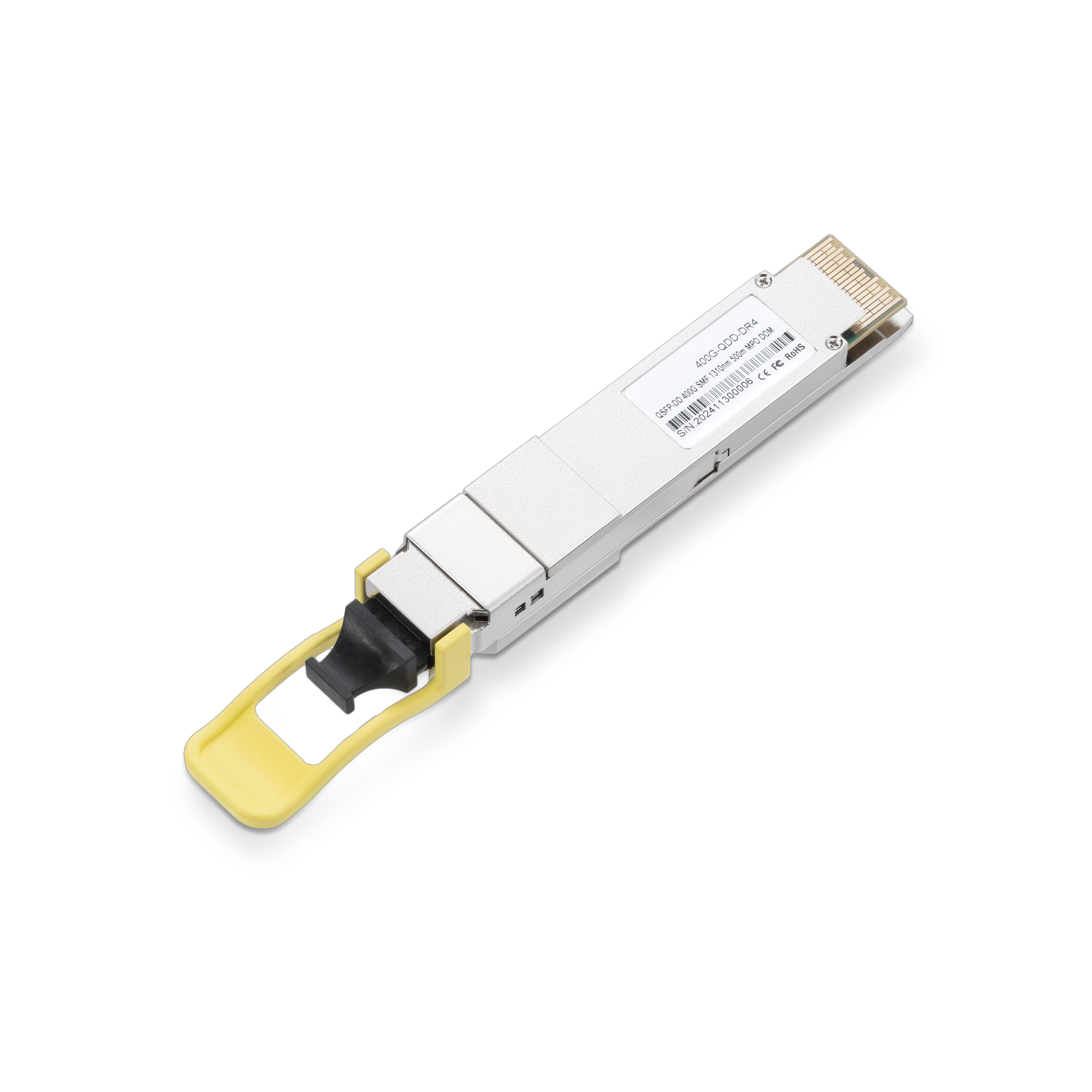

The QDD400G-DR4-500 is a high-performance optical transceiver for 400 Gigabit Ethernet. It supports up to 425 Gbps over single-mode fiber (SMF) with a maximum reach of 500 meters. Operating at 1310 nm, it is ideal for short-distance applications like data centers and enterprise networks. Its MPO-12 interface ensures easy integration and reliable data transmission.

It can be used as a 4x100G breakout to QSFP100G-DR-500.

• Hot Pluggable QSFP-DD form factor
• Operating data rate 425Gbps
•  Single +3.3V power supply
• Single MPO-12 APC connector
• Max power dissipation <9W
• Up to 500m Transmission on Single Mode Fiber (SMF) with FEC
• 1310nm EML laser
• PIN receivers
• Built-in digital diagnostic function
• Commercial temperature range 0°C to 70°C
