LC Boot Size Single Mode/Multimode Fiber Optic Connector
i7Fiber supplys various kinds of Single Mode and Multimode fiber optic connectors for LC applications. Each fiber optic connector is functionally tested before shipping.

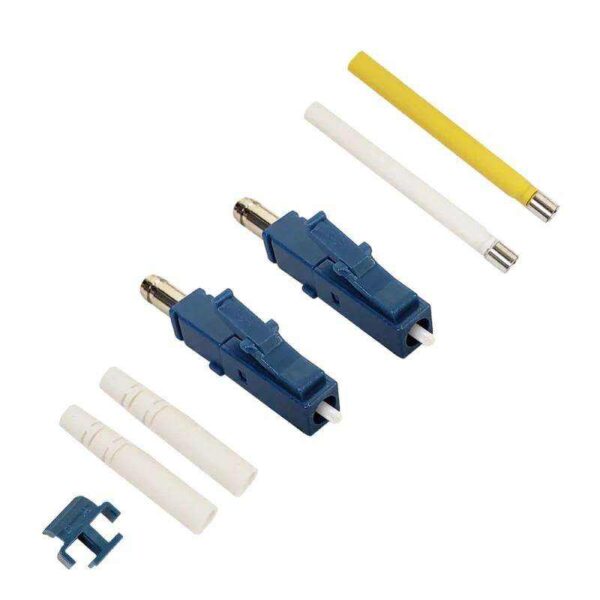

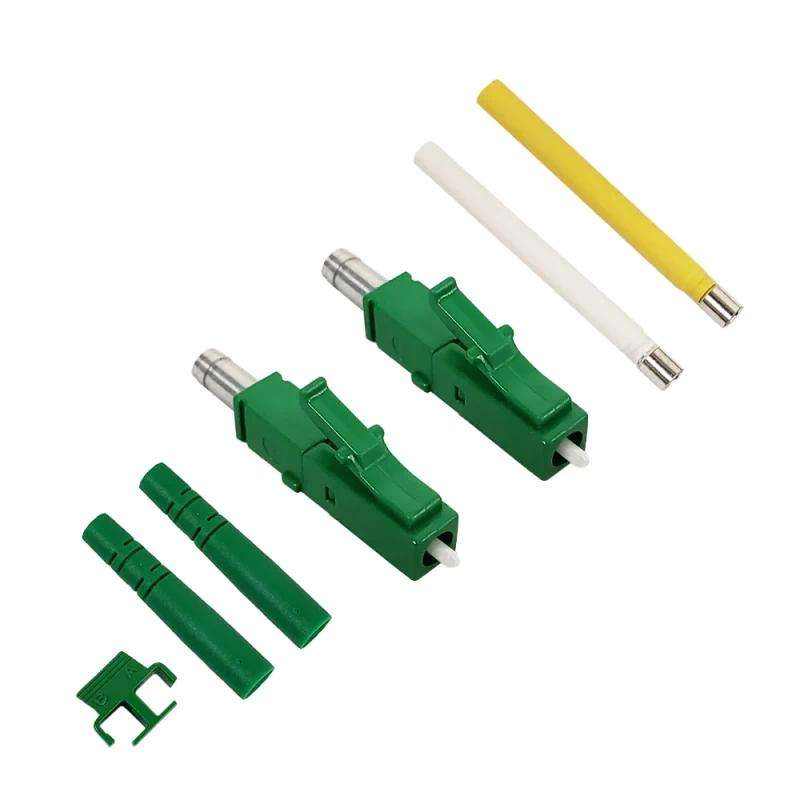

LC Connector consists of a Housing, a crimp sleeve and a strain relief boot. It comprises of a body with ceramic ferrule/spring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for, 0.9mm and 2-3mm cables. The connector is precision made to demanding specifications. The combination of a ceramic ferrule with precision polymer housing pro-vides consistent long-term mechanical and optical performance.
Specification
| Product name | Fiber Optic Connector Parts |
| Connector types | FC, SC, LC, ST, MU, SMA, E2000 |
| Fiber types | Monomode, Multimode, PM and custom |
| Standard polishing | PC,UPC,APC |
| Fiber diameter | 0.9,2.0,3.0mm |
| Ferrule materials | Ceramic |
| Connector Color | Blue,Green,Gray and other |
| Mode | SM or MM |
| Material | Plastic |
| Application | FTTH FTTB FTTX Network |
| Product Keywords | optical fiber connector,fiber optic sc apc connector,plastic fiber optic connector |
Application
Industrial sectors
Measurement equipment
Telecom, DWDM, CATV networks
Aerospace and avionics
Lasers
Medical…
