IP67 MTP, TPU BLACK, INDUSTRIAL ARMORED FIBER (Trunk 7.0mm, Breakout 3.0mm)

This rugged industrial armored cable delivers exceptional durability with high tensile strength, crush resistance, and rodent protection while maintaining excellent flexibility, along with added resistance to bending, oils, and abrasion – making it perfectly suited for demanding indoor and outdoor installations including underground conduit or direct-buried applications for inter-building network connections.

Note: When the total cable length is less than 3m, the breakout length is 0.3m. When the total cable length is 3m or more, the breakout length is 0.5m.

12 FIBER

OM4 Multimode, IP67 MTP-12 Female 0.35dB to Female 0.35dB, TPU

OM4 Multimode, IP67 MTP-12 Male 0.35dB to Male 0.35dB, TPU

OM4 Multimode, IP67 MTP-12 Female 0.35dB to Male 0.35dB, TPU

OS2 Single-mode, IP67 MTP-12 Female 0.35dB to Female 0.35dB, TPU

OS2 Single-mode, IP67 MTP-12 Male 0.35dB to Male 0.35dB, TPU

OS2 Single-mode, IP67 MTP-12 Female 0.35dB to Male 0.35dB, TPU

24 FIBER (1*MTP-24)

OM4 Multimode, IP67 MTP-24 Female 0.35dB to Female 0.35dB, TPU

OM4 Multimode, IP67 MTP-24 Male 0.35dB to Male 0.35dB, TPU

OS2 Single-mode, IP67 MTP-24 Male 0.35dB to Male 0.35dB, TPU

OS2 Single-mode, IP67 MTP-24 Female 0.35dB to Male 0.35dB, TPU

24 FIBER (2x MTP-12)

OM4 Multimode, IP67 2x (MTP-12) Female 0.35dB to Female 0.35dB, TPU

OM4 Multimode, IP67 2x (MTP-12) Male 0.35dB to Male 0.35dB, TPU

OM4 Multimode, IP67 2x (MTP-12) Female 0.35dB to Male 0.35dB, TPU

OS2 Single-mode, IP67 2x (MTP-12) Female 0.35dB to Female 0.35dB, TPU

OS2 Single-mode, IP67 2x (MTP-12) Male 0.35dB to Male 0.35dB, TPU

OS2 Single-mode, IP67 2x (MTP-12) Female 0.35dB to Male 0.35dB, TPU

Breakout Types for Optimizing Cable Routing

Four different breakout configurations meet your various needs. Please note that the breakout length is 0.3m by default instead of 0.5m when the total cable length is not more than 3m.

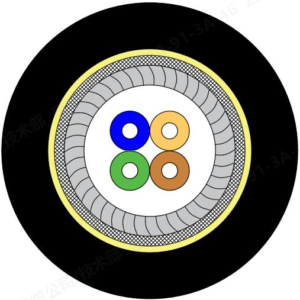

STRUCTURE

This rugged fiber optic cable features a multi-layer protective structure with tight-buffered fibers wrapped in helical stainless steel armor, reinforced by stainless steel wire mesh and Kevlar yarn, all encased in a durable TPU outer jacket – delivering superior physical protection and strain relief for reliable performance in demanding environments.
